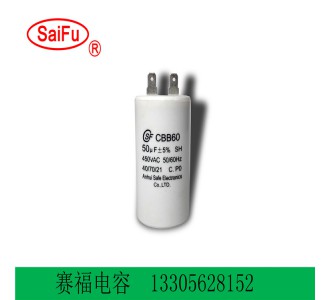

n 特點 ² 適用于頻率為50Hz/60Hz交流電源供電的單相電動機起動和運轉 ² 有自愈性 ² 高穩定性，可靠性 |
n Features ² Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power. ² Self-healing property ² Good stability and reliability |
n 技術要求Specifications
|
引用標準 Reference standards |
GB/T 3667.1（ IEC60252-1） |
|
氣候類別 Climatic category |
40 / 70 / 21、40 / 85 / 21 |
|
運行等級 Class of operation |
Class B (10000h) Class C (3000h) |
|
安全防護等級 Class of safety protection |
S0 /S3 |
|
電壓范圍 Voltage range |
250VAC、370VAC、440VAC、450VAC |
|
容量范圍 Capacitance range |
1～60μF |
|
電容量偏差 Capacitance tolerance |
± 5% 、 ± 10%、± 15% |
|
損耗角正切 Dissipation factor |
20 x10-4 (100Hz,20°C) |
|
端子間測試電壓Test voltage terminal to terminal UTT |
2Un for 2 seconds |
|
端子與外殼間測試電壓Test voltage terminal to case UTC |
(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds |
|
絕緣電阻 Insulation resistance |
≥3000s (100Hz，20°C，1min) |
n 外形尺寸Dimensions(mm)
|
規格 Specifications |
常規型Routine |
加螺桿或插片With screws or pins |
||
|
450VAC |
250VAC |
450VAC |
250VAC |
|
|
1μF |
φ26*52 |
φ26*52 |
φ30*52 |
φ30*52 |
|
2μF |
φ26*52 |
φ26*52 |
φ30*52 |
φ30*52 |
|
2.5μF |
φ26*52 |
φ26*52 |
φ30*52 |
φ30*52 |
|
3μF |
φ26*52 |
φ26*52 |
φ30*52 |
φ30*52 |
|
3.5μF |
φ26*52 |
φ26*52 |
φ30*59 |
φ30*52 |
|
4μF |
φ28.5*55 |
φ26*52 |
φ35*62 |
φ30*52 |
|
4.5μF |
φ28.5*55 |
φ26*52 |
φ35*62 |
φ30*52 |
|
5μF |
φ28.5*55 |
φ26*52 |
φ35*62 |
φ30*52 |
|
5.5μF |
φ34*62 |
φ26*52 |
φ35*62 |
φ30*52 |
|
6μF |
φ34*62 |
φ26*52 |
φ35*62 |
φ30*52 |
|
6.5μF |
φ34*62 |
φ26*52 |
φ35*62 |
φ30*52 |
|
7μF |
φ34*62 |
φ26*52 |
φ35*62 |
φ30*52 |
|
8μF |
φ34*62 |
φ26*52 |
φ35*62 |
φ30*52 |
|
9μF |
φ34*62 |
φ26*52 |
φ35*62 |
φ30*52 |
|
10μF |
φ34*62 |
φ26*52 |
φ35*72 |
φ30*52 |
|
12μF |
φ37*73 |
φ26*52 |
φ35*72 |
φ30*61 |
|
14μF |
φ37*73 |
φ34*62 |
φ40*72 |
φ30*61 |
|
15μF |
φ37*73 |
φ34*62 |
φ40*72 |
φ30*61 |
|
16μF |
φ37*73 |
φ34*62 |
φ40*72 |
φ30*61 |
|
18μF |
φ37*73 |
φ34*62 |
φ40*72 |
φ35*67 |
|
20μF |
φ40*72 |
φ34*62 |
φ40*72 |
φ35*67 |
|
25μF |
φ42*80 |
φ42*62 |
φ40*72 |
φ35*67 |
|
30μF |
φ42*90 |
φ40*72 |
φ45*95 |
φ40*72 |
|
35μF |
φ45*90 |
φ40*72 |
φ45*95 |
φ40*72 |
|
40μF |
φ50*100 |
φ42*90 |
φ50*110 |
φ40*97 |
|
45μF |
φ50*100 |
φ42*90 |
φ50*110 |
φ40*97 |
|
50μF |
φ50*100 |
φ42*90 |
φ50*120 |
φ40*97 |
|
60μF |
φ50*115 |
φ42*90 |
φ50*120 |
φ40*97 |
注：表中以外的規格和尺寸、端子，可以商談。
?
