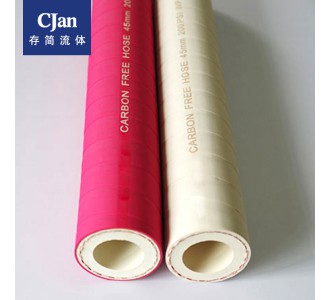

光伏行業還原電爐專用軟管 絕緣軟管JY15
Applications:
It is suitable for conveying purified water through the cable in the water cooling system of the internal reduction electric furnace with a voltage of 15KV. Pure carbon - free, high insulation, wear - resistant, anti - aging.
Construction:
Tube: white, smooth, pure, carbon-free, high-insulated EPDM synthetic rubber.
Reinforcement: high strength polyester fiber.
Cover: fabric impression, red or green, pure carbon - free, high - insulation EPDM synthetic rubber.
Shielding layer: Copper mesh braid layer, exterior covering high insulation rubber layer.
Electrical resistance: high insulation, excellent low leakage current. At 15KV DC/AC voltage, the leakage current is less than 20 Micro Amp.
Temperature range: -40 °C +120 °C
Environmental standards: EU pahs-2, REACH, ROHS directive.
Technical standard: HG/T2184, CJAN
應用范圍：
適用于電壓15KV內還原電爐水冷系統穿電纜輸送純凈水。純凈無碳，高絕緣，耐磨、抗老
化。
軟管結構：
內管：白色，光滑、純凈、無碳、高絕緣的EPDM合成橡膠。
增強層: 高強度聚酯纖維線。
外管：紅色，布面，純凈無碳、高絕緣EPDM合成橡膠；其他白色/綠色/藍色可按客戶要求定制。
屏蔽層：銅網編織層，外表覆蓋高絕緣橡膠層。
耐電壓：
高絕緣，優秀的低泄露電流。在15KV DC/AC電壓下，泄露電流小于20 Micro Amp。
適用溫度：-40 to 120 ℃。
環保標準：符合歐盟PAHS-2、REACH、ROHS指令。
技術標準：HG/T2184, CJAN
|
編碼 |
內徑 |
外徑 |
彎曲半徑 |
工作壓力 |
爆破壓力 |
重量 |
每卷長度 |
|
|
inch |
mm |
mm |
mm |
PSI |
PSI |
kg/m |
m |
|
|
JY15032 |
1-1/4" |
31.8 |
60 |
260 |
200 |
800 |
3 |
40 |
|
JY15038 |
1-1/2" |
38.1 |
66 |
300 |
200 |
800 |
3.4 |
40 |
|
JY15042 |
42mm |
42 |
70 |
336 |
200 |
800 |
3.5 |
40 |
|
JY15045 |
45mm |
44.5 |
73 |
360 |
200 |
800 |
3.7 |
40 |
|
JY15050 |
2" |
50.8 |
79 |
400 |
200 |
800 |
4.2 |
40 |
